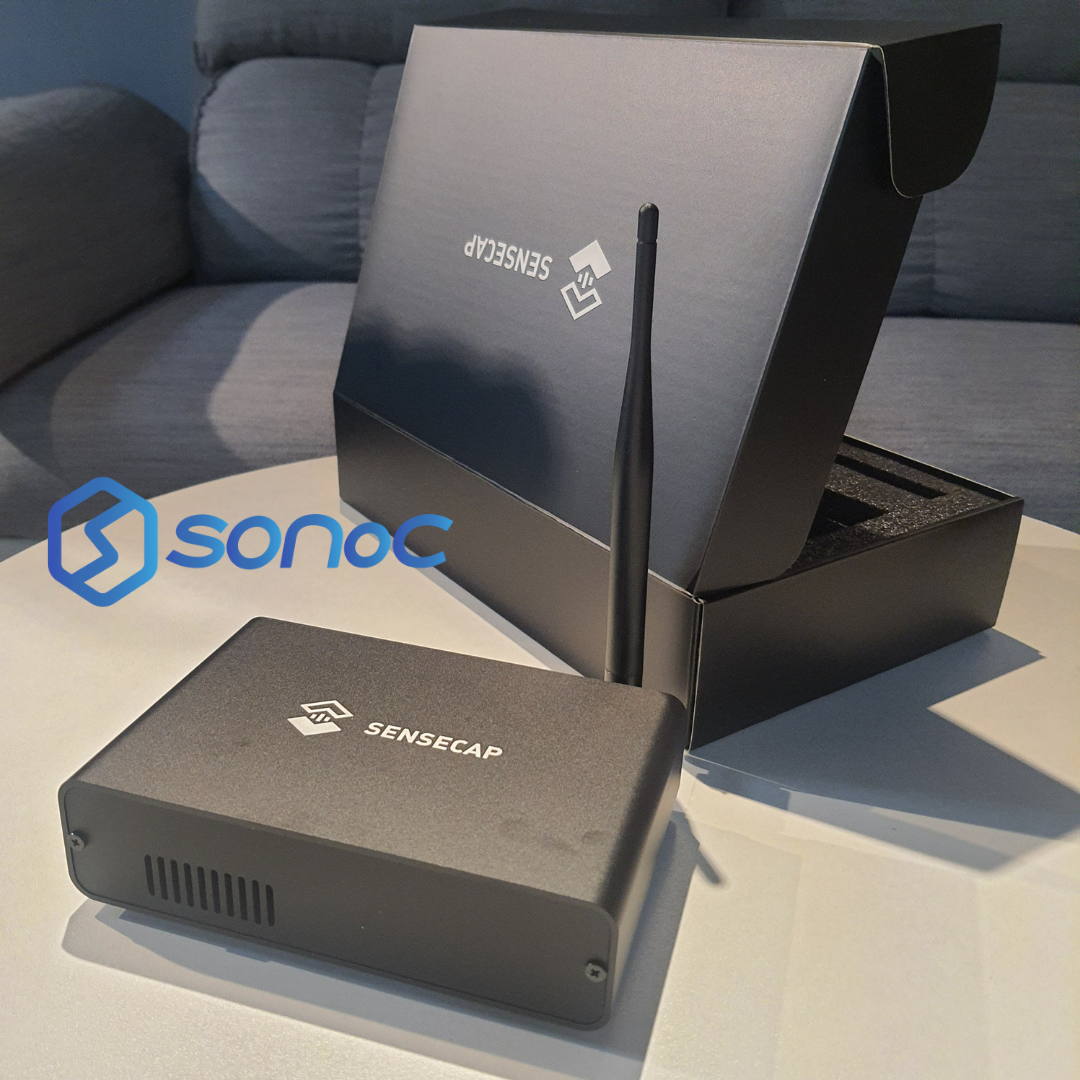

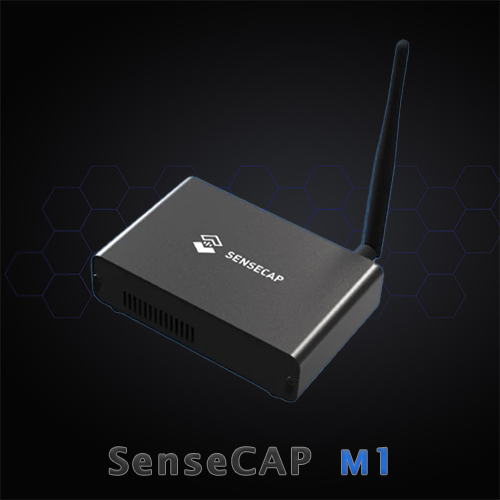

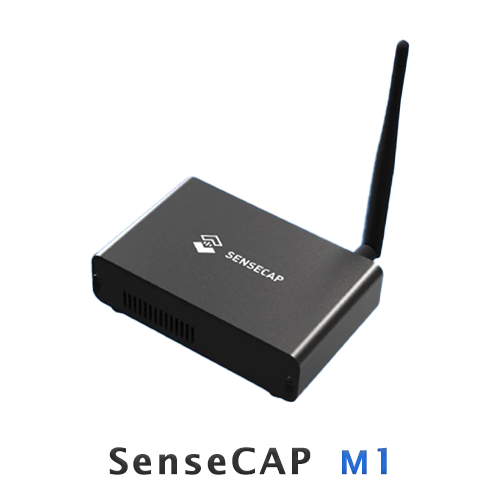

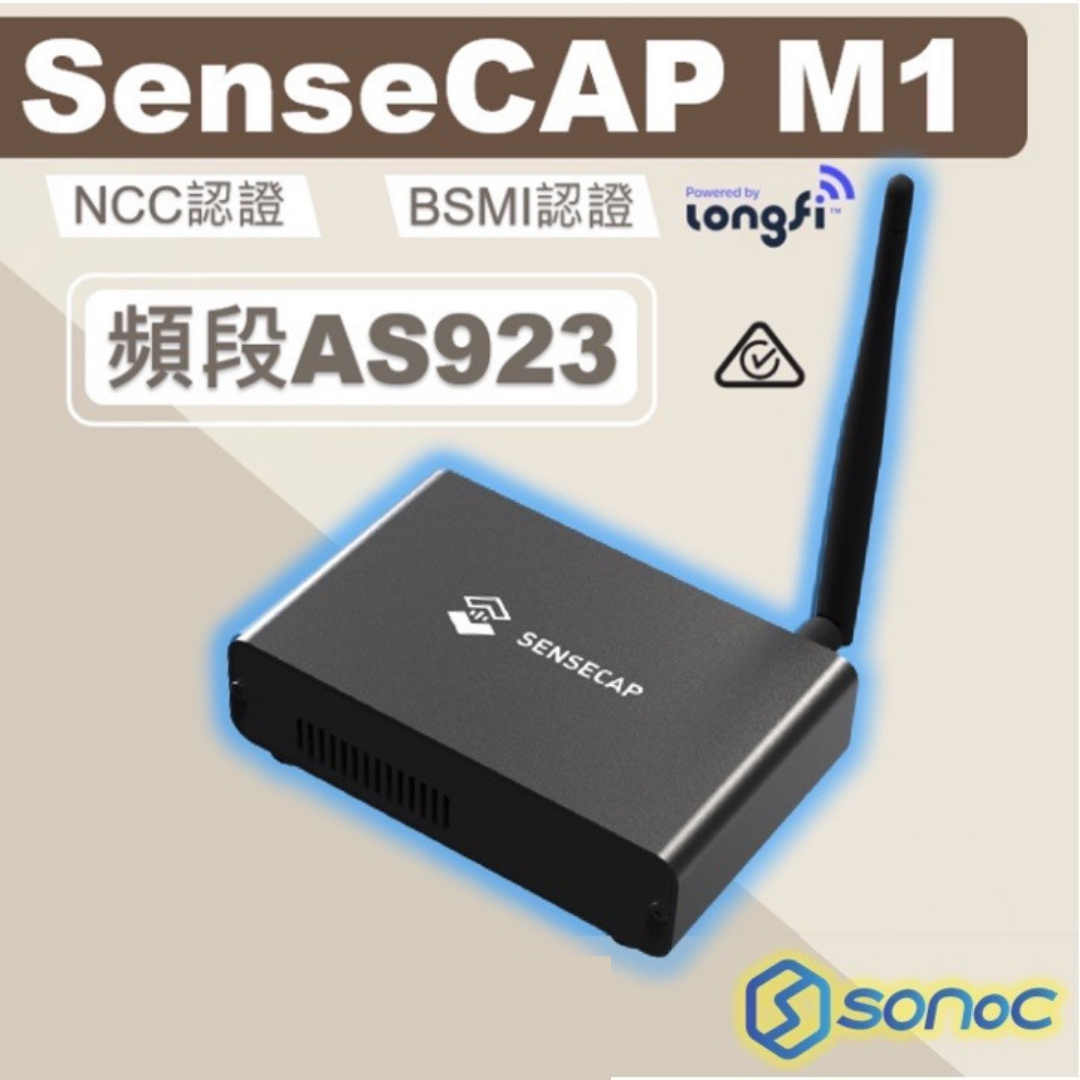

SenseCAP M1 LoRaWAN Indoor Gateway - Band AS923
SenseCAP M1 LoRaWAN Indoor Gateway - Band AS923
Couldn't load pickup availability
SenseCAP M1 follows NCNR , except for the quality problems. You need to contact us to review the problem if you want to return.
SenseCAP M1 is a high-performing, ready-to-use LoRaWAN indoor gateway compatible with Helium LongFi Network .
What is SenseCAP M1
SenseCAP M1 is a high-performing, ready-to-use LoRaWAN indoor gateway compatible with Helium LongFi Network . SenseCAP M1 can connect to The People's Network within a few simple steps in minutes, and helps you build LoRa applications with low costs. SenseCAP M1 provides miles of wireless network coverage and data transmission capacity for LoRa/LoRaWAN devices. It helps you join and contribute to the infrastructure of The People's Network while enjoying the benefits from the Helium community .
Specifications
|
Processor |
Raspberry Pi 4 (Broadcom BCM2711, Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz) |
|
RAM |
4GB |
|
Storage |
64GB MicroSD Card |
|
Frequency |
EU868 Version: 863MHz ~ 870MHz US915 Version: 902MHz ~ 928MHz AS923 Version: 902MHz ~ 928MHz |
|
Sensitivity |
-125dBm @125KHz/SF7 |
|
-139dBm @125KHz/SF12 |
|
|
TX Power |
Up to 26dBm |
|
Antenna Gain |
US915 / AS923: 2.6dBi EU868: 2.8 dBi |
|
Antenna Impedance |
50 Ohms |
|
Antenna Radiation Pattern |
Omni-Directional |
|
Wi-Fi |
2.4 GHz and 5.0 GHz IEEE 802.11ac wireless |
|
Bluetooth |
Bluetooth 5.0, BLE |
|
LoRaWAN |
Supports Class A, C |
|
Input Voltage |
DC 5V - 3A |
|
Interfaces |
USB Type-C (Power Supply) * 1 Ethernet RJ45 * 1 RP-SMA Female Antenna Connector* 1 |
|
Operating Temperature |
0°C to 50°C |
|
Relative Humidity |
0% - 90% (non-condensing) |
|
Heat Dissipation |
Aluminum enclosure, a heatsink, and a cooling fan |
|
IP Grade |
IP20 |
|
Certification |
FCC/CE/RCM |
